Levon Custom DC Motor - DZ
Image may not reflect selected features

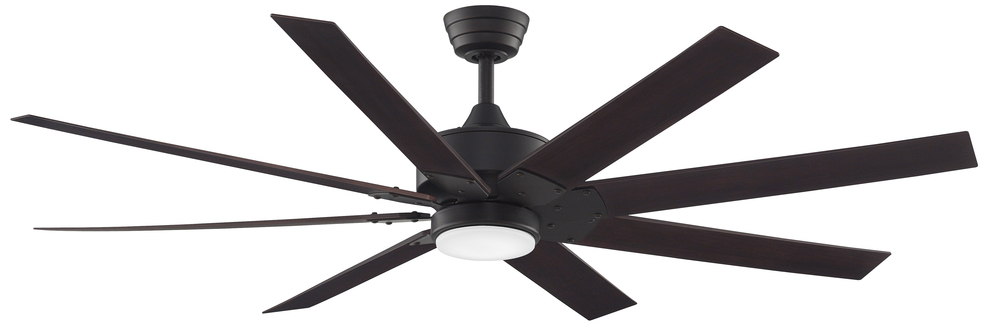

Levon Custom DC Motor - DZ (MAD7912BDZ)
The Levon Custom by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon Custom is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon Custom will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levon Customs eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon Custom is available in multiple damp rated finishes and can accommodate a ceiling slope up to 42 degrees. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
8244 Cubic Feet per Minute
Electricity Rate
31 Watts (excluded lights)
Airflow Efficiency
270 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
MAD7912BDZ
Dimensions
Height: 15.58"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Bronze
Style
Traditional
Option
Energy Star , Damp Rated
Voltage
10-99
Number of Blades
8+ Blades
Subfinish
Dark Bronze
Location Rating
Damp Rated
Category
Fan-Multi
Finish
Dark Bronze
Option
Damp
Family
Levon Custom
Voltage
120 V
Additional Info
3 speed DC motor with reverse switch, fan speed, light controls, sleep timer,home away, fresh air an , 7880 CFM on High , Compatible with most Smart home devices (required controls sold separately) , ENERGY STAR Most Efficient 2020 , Set of (8) blades with Damp Rated optional finishes included; optional 18 watt LED light kit (sold s , TR205D handheld remote with CR2032 batteries included
Air Flow CFM
8244
Air Flow Efficiency
270
Amperage
0.4
Blade Pitch
14
Canopy
5.75 Dia x 2.57 H
Diameter
9.06
Down Rod Included
6
Electricity Used
31
Harmonized Codes
8414.51.3000
Length
52, 64, 72
Light Kit Included
No
Max Length
72
Max Width
72
Motor Fan Speed
16
Motor RPM
95
Motor Size
165nm
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
11.3
Ship Carton Length
20
Ship Carton Width
12.05
Ship Weight
21.94
Sold By
Each
Warranty
Limited Lifetime
Weight
19.67
Airflow Efficiency Low
784
Airflow Efficiency Medium
445
Avg Airflow Efficiency
291
Avg CFM Energy
6177
Avg Energy Use Watts
21
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Canopy Diameter
5.75 Dia
Canopy Height
2.57 H
Cap Included
No
Carton Cubic Feet
1.58
Cartons Per Unit
1
Case Height
11.3
Case Length
20
Case Quantity
1
Case Weight Pounds
21.94
Case Width
12.05
CEC Uploaded
Yes
Ceiling To Blade Edge
14.4
Ceiling To Bottom
15.58 , 16.27
CFM Low
4090
CFM Medium
6158
Compatible Accessories
CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCB1-52
Compatible Blades
B7912N, B7912WA, B7912WP, B7913BN, B7913CYWA, B7914BN, B7914CYWA, BPW7912BL, BPW7912BN, BPW7912CY, BPW7912DWA, BPW7912MW, BPW7912N, BPW7912WE, BPW7912WP, BPW7912WW, BPW7913BL, BPW7913BN , BPW7913CY, BPW7913DWA, BPW7913MW, BPW7913N, BPW7913WE, BPW7913WP, BPW7913WW, BPW7914BL, BPW7914BN, BPW7914CY, BPW7914DWA, BPW7914MW, BPW7914N, BPW7914WE, BPW7914WP, BPW7914WW
Compatible Light Kits
LK7912BDZ
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.4
Current Draw Low
0.08
Current Draw Medium
0.21
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
9.06
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
42
Max Watt
31
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
8
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
95
RPM Low (II)
48
RPM Medium (IV)
72
RPM Medium IV
124
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
5
Watts Medium
14


Other Details:
  • 3 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit
  • 8244 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Energy Star Most Efficient 2022
  • Set Of (8) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
  • Tr305 Handheld Remote With 23a Battery Included
Ceiling To Bottom
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
520
98
/ / 1
($520.98 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
