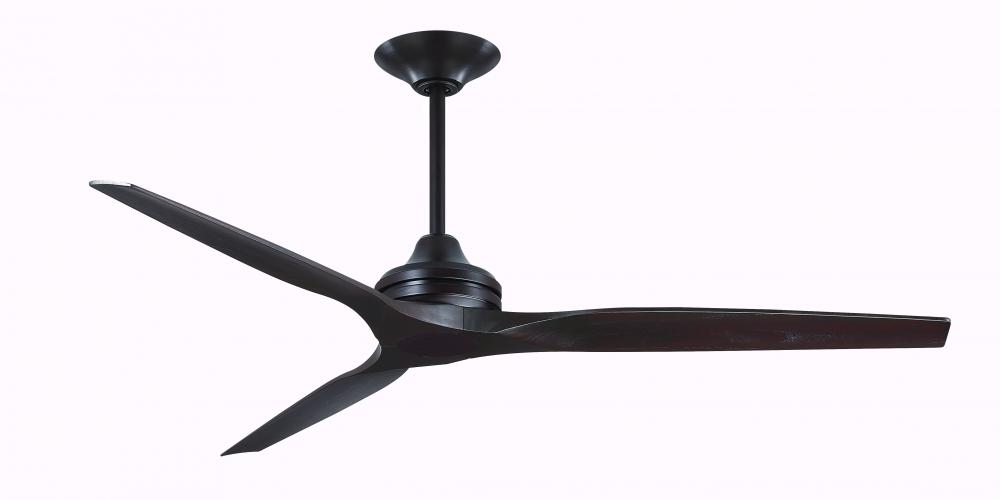

Spitfire DC Motor - DZ
Image may not reflect selected features
/vendors/90/large/MAD6721DZ%2BB6720-64DWA.jpg
additional image
Spitfire DC Motor - DZ (MAD6721DZ)
The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
12900 Cubic Feet per Minute
Electricity Rate
33 Watts (excluded lights)
Airflow Efficiency
386 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
MAD6721DZ
Dimensions
Height: 21.08"
Width: 64.00"
Length: 64.00"
Additional product details
Category
Fans
Subcategory
Ceiling Fans
Finish
Bronze
Style
Traditional
Option
Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Subfinish
Dark Bronze
Location Rating
Damp Rated
Wattage
8w
Category
Fan-Multi
Finish
Dark Bronze
Option
Damp
Family
Spitfire
Voltage
120 V
Additional Info
12900 CFM on High , 16 speed DC motor with reverse switch, fan speed, light controls, Fresh Air, Safe Exit, Sleep Timer and Home Away features , CHINA , Compatible with most smart home devices (recquired controls sold separately) , Energy Star Most Efficient 2022 , Set of (3) Damp rated blades with multiple finishes available and 18 watt CCT Select LED light kit available (sold separately) , TR305 handheld remote with 23A battery included
Air Flow CFM
12900
Air Flow Efficiency
386
Amperage
0.47
Blade Pitch
14
Canopy
8.19 Dia x 2.2 H
Diameter
8.07
Down Rod Included
12
Electricity Used
33
Harmonized Codes
8414.51.3000
Length
64, 72, 84, 96
Light Kit Included
No
Max Length
96
Max Width
96
Motor Fan Speed
16
Motor RPM
112
Motor Size
153 x 25
Motor Type
DC
Remote Control Included
TR305
Ship Carton Height
10.94
Ship Carton Length
14.37
Ship Carton Width
10.43
Ship Weight
15.61
Sold By
Each
Warranty
Limited Lifetime
Weight
14.18
Airflow Efficiency Low
1049
Airflow Efficiency Medium
880
Avg Airflow Efficiency
376
Avg CFM Energy
7429
Avg Energy Use Watts
20
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Blade Pitch Degrees
14
Canopy Diameter
8.19 Dia
Canopy Height
2.2 H
Cap Included
No
Carton Cubic Feet
0.95
Case Height
10.94
Case Length
14.37
Case Quantity
1
Case Weight Pounds
15.61
Case Width
10.43
CEC Uploaded
Yes
Ceiling To Blade Edge
19.42
Ceiling To Bottom
19.42 , 21.08
CFM Low
2958
CFM Medium
7355
Compatible Accessories
CCK6721DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCK1-52DZ
Compatible Blades
B6720-64BL, B6720-64BN, B6720-64DF, B6720-64DWA, B6720-64MW, B6720-64N, B6720-64WE, B6720-64WK, B6720-64WW, B6720-72BL, B6720-72BN, B6720-72DF, B6720-72DWA, B6720-72MW, B6720-72N, B6720-72WE, B6720-72WK, B6720-72WW , B6720-84BL, B6720-84BN, B6720-84DF, B6720-84DWA, B6720-84MW, B6720-84N, B6720-84WE, B6720-84WK, B6720-84WW, B6720-96BL, B6720-96BN, B6720-96DF, B6720-96DWA, B6720-96MW, B6720-96N, B6720-96WE, B6720-96WK, B6720-96WW
Compatible Light Kits
LK6721BDCDZ
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.47
Current Draw Low
0.06
Current Draw Medium
0.14
Damp Rated
Yes
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
12
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
8.07
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Light Kit Energy Star
Yes
Max Ceiling Slope
19
Max Watt
33
Maximum Slope Degree
19
Motor Finish Method
Painted
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
112
RPM Low (II)
29
RPM Medium (IV)
67
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
3
Watts Medium
8


Other Details:
  • 12900 Cfm On High
  • 16 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Fresh Air, Safe Exit, Sleep Timer And Home Away Features
  • Compatible With Most Smart Home Devices (recquired Controls Sold Separately)
  • Energy Star Most Efficient 2022
  • Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Cct Select Led Light Kit Available (sold Separately)
  • Tr305 Handheld Remote With 23a Battery Included
Ceiling To Bottom
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
339
98
/ / 1
($339.98 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 162 items available.
