Spitfire Motor - BL
Image may not reflect selected features

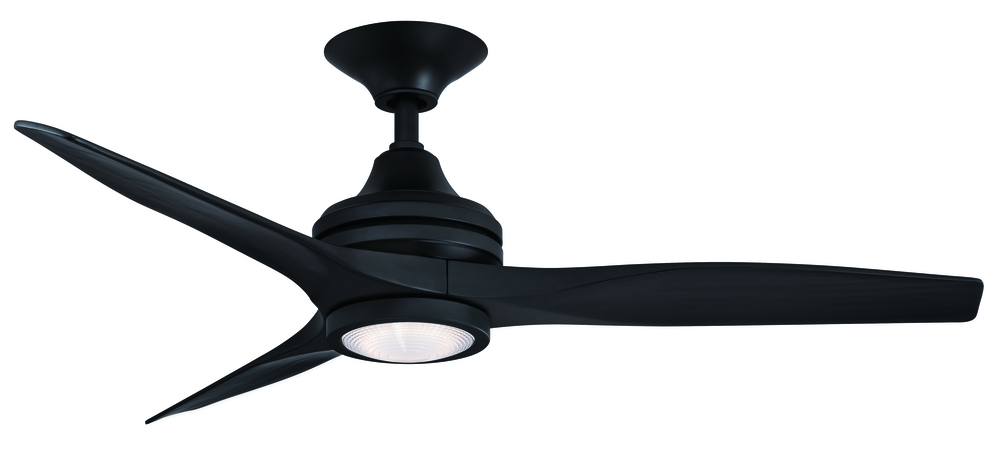

Spitfire Motor - BL (MA6721BBL)
The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
6641 Cubic Feet per Minute
Electricity Rate
61 Watts (excluded lights)
Airflow Efficiency
108 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
MA6721BBL
Dimensions
Height: 12.00"
Width: 48.00"
Length: 48.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Black
Style
Traditional
Option
Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Damp Rated
Category
Fan-Multi
Finish
Black
Option
Damp
Family
Spitfire
Voltage
120 V
Additional Info
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 5227 CFM on High , Limited Lifetime Warranty , Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
6641
Air Flow Efficiency
108
Amperage
0.52
Blade Pitch
21
Canopy
7.09 Dia x 2.2 H
Diameter
8.07
Down Rod Included
4.5
Electricity Used
61
Harmonized Codes
8414.51.3000
Length
48, 60
Light Kit Included
No
Max Length
60
Max Width
60
Motor Fan Speed
3
Motor RPM
130
Motor Size
188 x 25
Motor Type
AC
Remote Control Included
TR500
Ship Carton Height
10.91
Ship Carton Length
14.49
Ship Carton Width
10.47
Ship Weight
17.85
Sold By
Each
Warranty
Limited Lifetime
Weight
16.34
Airflow Efficiency Low
175
Airflow Efficiency Medium
128
Avg Airflow Efficiency
92
Avg CFM Energy
3776
Avg Energy Use Watts
41
Avg Estimated Yearly Energy Cost
12
Avg Estimated Yearly Energy Cost on HIGH
17
Canopy Diameter
7.09 Dia
Canopy Height
2.2 H
Cap Included
No
Carton Cubic Feet
0.96
Cartons Per Unit
1
Case Height
10.91
Case Length
14.49
Case Quantity
1
Case Weight Pounds
17.85
Case Width
10.47
CEC Uploaded
Yes
Ceiling To Blade Edge
12
Ceiling To Bottom
12 , 13.71
CFM Low
2433
CFM Medium
4614
Compatible Accessories
DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCK1-52BL, CCK6721BL
Compatible Blades
B6720BL, B6720BN, B6720DF, B6720DWA, B6720N, B6720WE, B6720WK, B6720WW, B6720-48BL, B6720-48BN, B6720-48DF, B6720-48DWA, B6720-48MW, B6720-48N, B6720-48WE, B6720-48WK, B6720-48WW
Compatible Controls
CRL4WH, CRL8TS, TR24LA, TR24WH
Compatible Light Kits
LK6721BBL
Compatible Wall Controls
C25, CW1LA, CW1SWLA, CW1SWWH, CW1WH, CW2LA, CW2WH, CW5LA, CW5WH, CW60WH
Country of Origin
China
Current Draw High
0.52
Current Draw Low
0.25
Current Draw Medium
0.4
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
8.07
Included Control
TR500
Included Control Type
Handheld
Leadwire
80
Light Kit Energy Star
No
Max Ceiling Slope
19
Max Watt
61
Maximum Slope Degree
19
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
130
RPM Low (II)
54
RPM Medium (IV)
98
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
14
Watts Medium
36


Other Details:
  • 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
  • 5227 Cfm On High
  • Limited Lifetime Warranty
  • Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Ceiling To Bottom
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
326
98
/ / 1
($326.98 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
