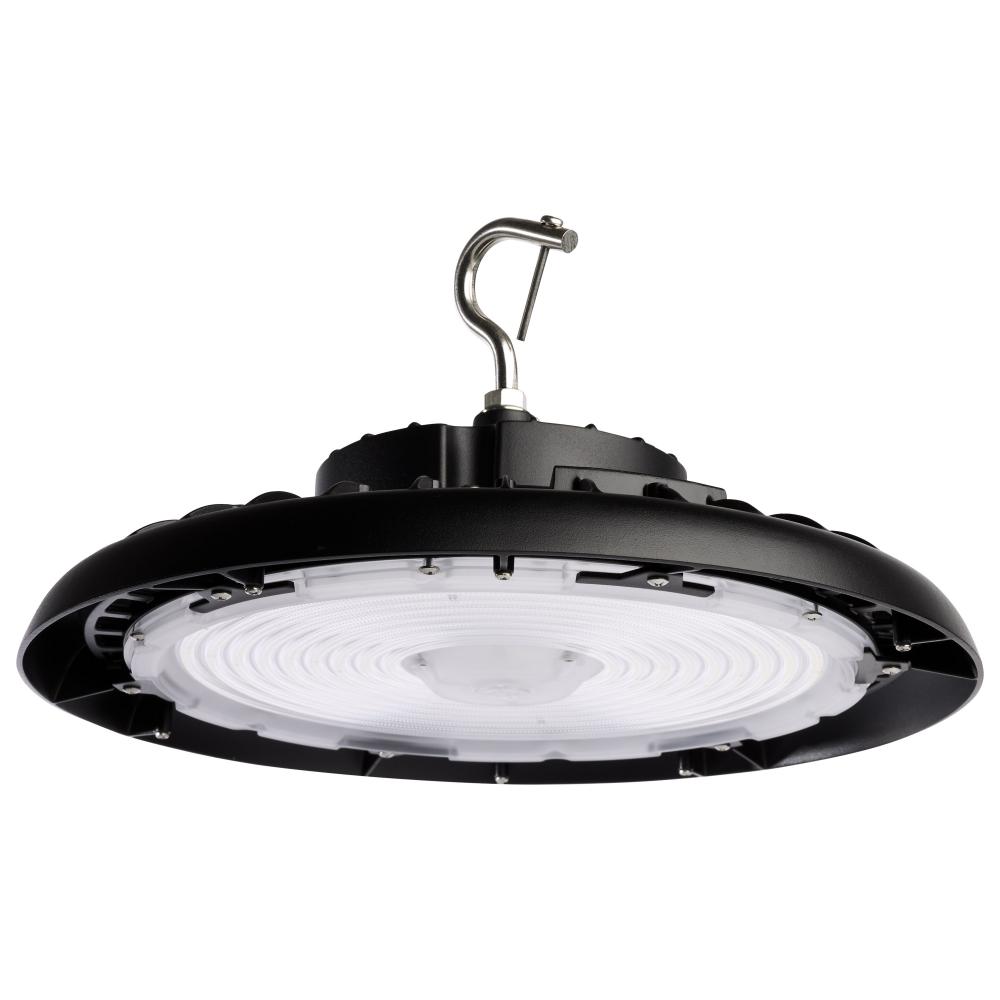

200 Watt UFO LED High Bay; 5000K; 28800 Lumens; 120-277 Volt; Black Finish
Image may not reflect selected features
/vendors/81/large/65-786R2.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
200 Watt UFO LED High Bay; 5000K; 28800 Lumens; 120-277 Volt; Black Finish (65/786R2)
200 Watt UFO LED High Bay; 5000K; 28800 Lumens; 120-277 Volt; Black Finish
Product Specification
Item #
65/786R2
Dimensions
Height: 8.11"
Width: 13.39"
Additional product details
Category
Utility
Subcategory
Other Utility
Option
LED , Prop 65
Lumens
3300+
Kelvin
5501-6000
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Diameter
13.39
Dimmable
Yes-Dimmable
Each Height
4.92
Each Length
14.17
Each Width
14.17
Lumens
28800L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
1.667-0.722A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
0.5717
Each Quantity
1
Efficacy
144.00 LPW
FCC Compliant
Yes
Feature 1
Integrated Sensor Port
Feature 2
IP65
Feature 3
6KV Surge Protection
Feature 4
6 Foot Whip
Feature 5
90 degree Beam Angle
Feature 6
50,000 Hours
Feature 7
5 Year Warranty
Finish Family
Black
Has Emergency Battery
No
HID Equiv
600W
Impact Rating (IK)
IK08
Incandescent Equivalent
1500W
Includes
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor
Indoor
Installation Notes
Mounting Height: Up to 30 feet
IP Rating
IP65
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
SATCO|NUVO's 65-786R2 200-watt, 5000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Pack Type
Kraft Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
5
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's 200-watt, 5000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
LED UFO HIGHBAY 200W/5000K
Temperature (CCT)
5000K
Title 20 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
6.42
Finish
Additional options that would change other selections
Recommended Items
Call for Price
Qty:
BASE PRICE:
$
178
00
/ / 1
($178.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 2089 items available.
