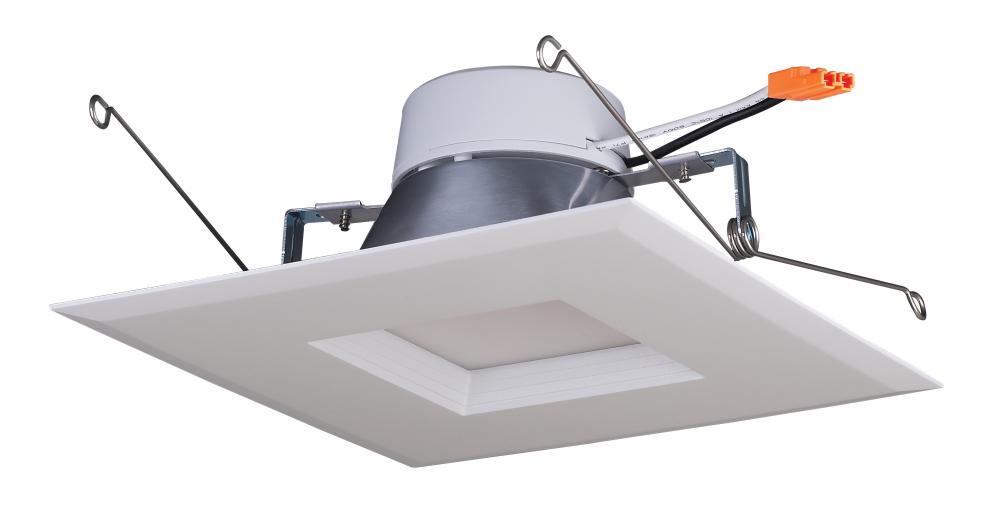

11.5 watt LED Downlight Retrofit; 5-6 inch square shape; 5000K; 120 volt; White Finish (S39773)

11.5 watt LED Downlight Retrofit; 5-6 inch square shape; 5000K; 120 volt; White Finish

Product Specification

Item #

S39773

Dimensions

Height: 3.25"

Width: 7.41"

Additional product details

Category

Recessed

Sub Category

Retrofits

Additional Info

Trim material is Thermo Plastic; Trim color is White

Bulb Hours

50000

Bulb Kelvin

Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Dimmable

Yes-Dimmable

Harmonized Codes

9405.42.6000

Length

7.41

Lumens

1000L

Ship Carton Height

7.72

Ship Carton Length

8.460000000000001

Ship Carton Width

3.46

Warranty

5 Year Limited - Fixtures

Amps

0.096A

ANSI Base

E26 Adapter

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

5-6 in.

Carton Cubic Feet

0.1308

Cartons Per Unit

CCT Selectable

CEC

T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

90+

Dimmable Down To

100 to 20 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy

86.96 LPW

FCC Compliant

Yes

Feature 1

Natural light

Feature 2

LED

Feature 3

Wet rated for indoor use

Feature 4

L:7.51 W:7.41 H:3.25

Feature 5

Square, White/Frosted

Finish Family

White

Fixture shape

Square

IC Rated

Yes

Incandescent Equivalent

85W

Indoor Outdoor

Indoor

Lens Finish

Frost

Lens Material

Plastic (PS)

Long Description

Satco's S39773 11.5-watt, 5-6 inch square LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long l

Material

Thermo Plastic (PBT)

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.97

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's 11.5-watt, 5-6 inch square LED retrofit downlight, offers natural light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for offices, retail spaces, and hospitality applications. Dimmable and long lasting,

Safety Listing

cULus - Classified;cULus - Certified

SDS class

LED_Fixture

Short Description

11.5WLED/5-6/SQ/50K/120V

Temperature (CCT)

5000K

Title 20 Compliant

Yes

Trim Color

White

Wattage Selectable

Weight Lb.

0.65

Finish
