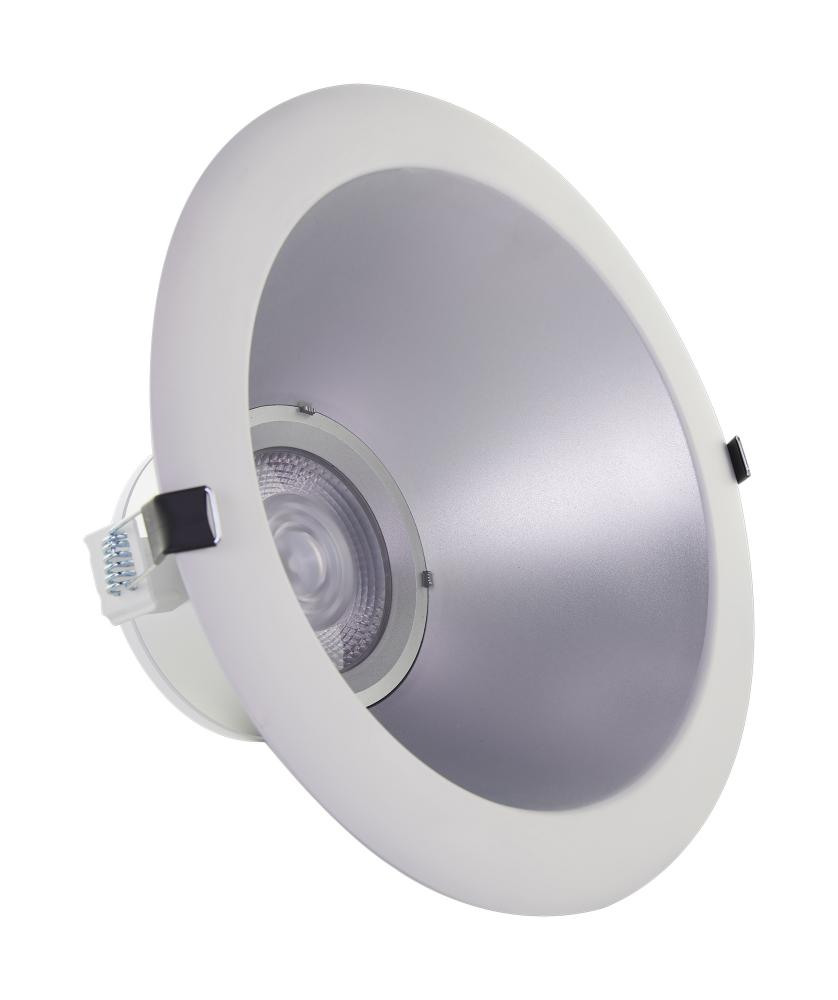

14.5 Watt Commercial LED Downlight; 4 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
Image may not reflect selected features
14.5 Watt Commercial LED Downlight; 4 in.; Color Adjustable; Lumen Adjustable; 120-277 volt (S11814)
14.5 Watt Commercial LED Downlight; 4 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
Product Specification
Item #
S11814
Dimensions
Height: 2.69"
Width: 4.65"
Additional product details
Category
Recessed Ltg.
Subcategory
LED Bulbs , Other Recessed Ltg.
Finish
Silver
Style
Traditional
Option
Energy Star , LED , Prop 65
Lumens
450-800
Kelvin
4001-4500
Category
Recessed
Sub Category
Commercial
Style
Utility
Bulb Hours
50000
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
4.65
Dimmable
Yes-Dimmable
Harmonized Codes
9405.42.6000
Lumens
600L/800L/1020L
Ship Carton Height
4.92
Ship Carton Length
7.48
Ship Carton Width
5.12
Warranty
5 Year Limited - LED Commercial Downlights
Air Tight
No
Amps
0.071-0.031/0.092-0.040/0.121-0.052A
BAA Compliant
No
Beam Spread
40
CA Prop-65
Lead
Can Size
4 in.
Carton Cubic Feet
0.109
Cartons Per Unit
1
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
4.10 in. Cutout
Connection
Direct Wired
Country Of Origin
China
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
Efficacy
70.59/72.73/70.34 LPW
ES Category
Downlight Recessed
ES Unique ID
ESID-2353229
FCC Compliant
Yes
Feature 1
Lawful for sale in California
Feature 2
Selectable wattage, lumens, and CCT
Feature 3
Remote driver and J-box with knockouts
Feature 4
Quick connect feature for easy installation
Feature 5
ENERGY STAR listed
Feature 6
Five year limited warranty
Feature 7
Five year limited warranty
Finish Family
Silver
Fixture shape
Round
Flr Equiv
1 x 18W CFL
Has Driver
Yes
IC Rated
Yes
Incandescent Equivalent
45W/65W/85W
Indoor Outdoor
Indoor
Installation Notes
Can be installed with or without the rough-in plate (80-959)
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
Satco's S11814 wattage selectable, 4 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations and
Material
Aluminum
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +40C (+104F)
Pack Type
Box
Power Factor
0.99
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure
Safety Listing
cETLus - Listed
SDS class
LED_Lamp
Short Description
14.5WLED/CDL/4/ADJ-CCT/40D
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Trim Color
White
Wattage Selectable
Yes
Weight Lb.
1.23
