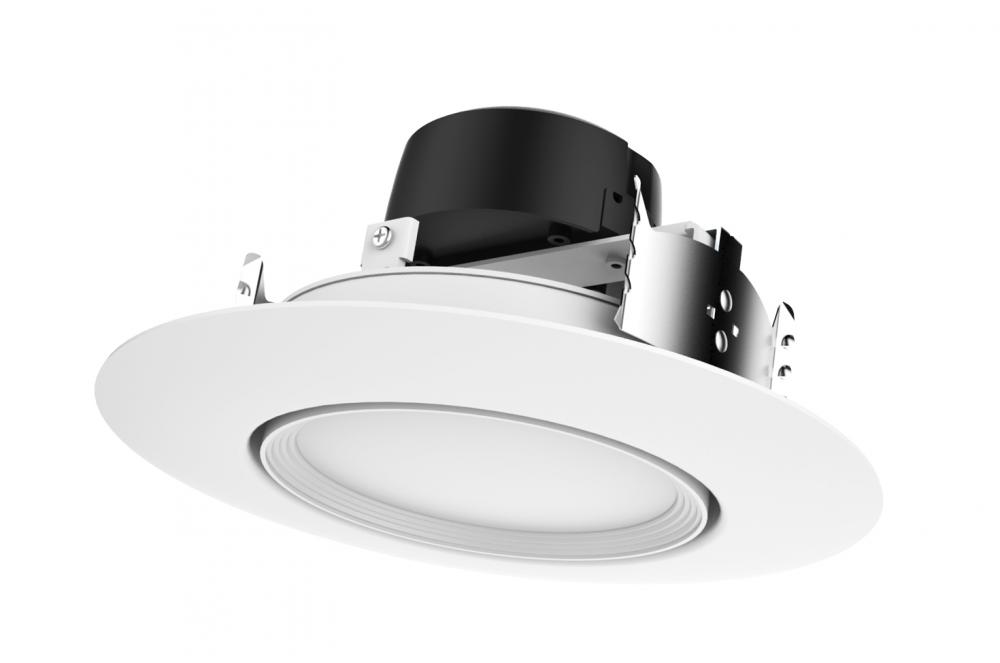

9 watt LED Directional Retrofit Downlight - Gimbaled; 5"-6"; 2700K; 120 volts; Dimmable; (S39472)

9 watt LED Directional Retrofit Downlight - Gimbaled; 5"-6"; 2700K; 120 volts; Dimmable; White Finish

Product Specification

Item #

S39472

Dimensions

Height: 3.91"

Width: 7.41"

Additional product details

Category

Recessed

Sub Category

Retrofits

Additional Info

Trim material is Thermo Plastic; Trim color is White

Bulb Hours

50000

Bulb Kelvin

Warm White

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

7.41

Dimmable

Yes-Dimmable

Harmonized Codes

8539.50.0091

Lumens

800L

Ship Carton Height

8.07

Ship Carton Length

8.27

Ship Carton Width

4.33

Warranty

5 Year Limited - Fixtures

Amps

0.075A

ANSI Base

E26 Adapter

BAA Compliant

Beam Spread

CA Prop-65

Lead

Can Size

5-6 in.

Carton Cubic Feet

0.1672

Cartons Per Unit

CCT Selectable

CEC

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Connection

Direct Wired

Country Of Origin

China

CRI

90+

Dimmable Down To

100 to 10 percent

Dimming Type

Forward Phase or Reverse Phase or Phase Selectable

Efficacy

88.89 LPW

FCC Compliant

Yes

Feature 1

Warm white light

Feature 2

LED Directional

Feature 3

Damp rated for indoor use

Feature 4

H:3.91 W:7.41

Feature 5

Round, White/Frosted

Finish Family

White

Fixture shape

Round

Incandescent Equivalent

65W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Frost

Lens Material

Plastic (PS)

Long Description

Satco's S39472 9-watt, 5-6 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 90 degree beam angle. Dimmable and energy efficient, this

Material

Thermo Plastic (PBT)

Mounting Procedure

Ceiling

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

0.95

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

Satco's 9-watt, 5-6 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 90 degree beam angle. Dimmable and energy efficient, this fixtur

Safety Listing

cULus - Classified;cULus - Certified

SDS class

LED_Fixture

Short Description

9WLED/DIR/5-6/27K/120V

Specification Notes

Aiming Angle: 30dg

Temperature (CCT)

2700K

Title 20 Compliant

Yes

Title 24 Compliant

Yes

Trim Color

White

Wattage Selectable

Weight Lb.

0.86
