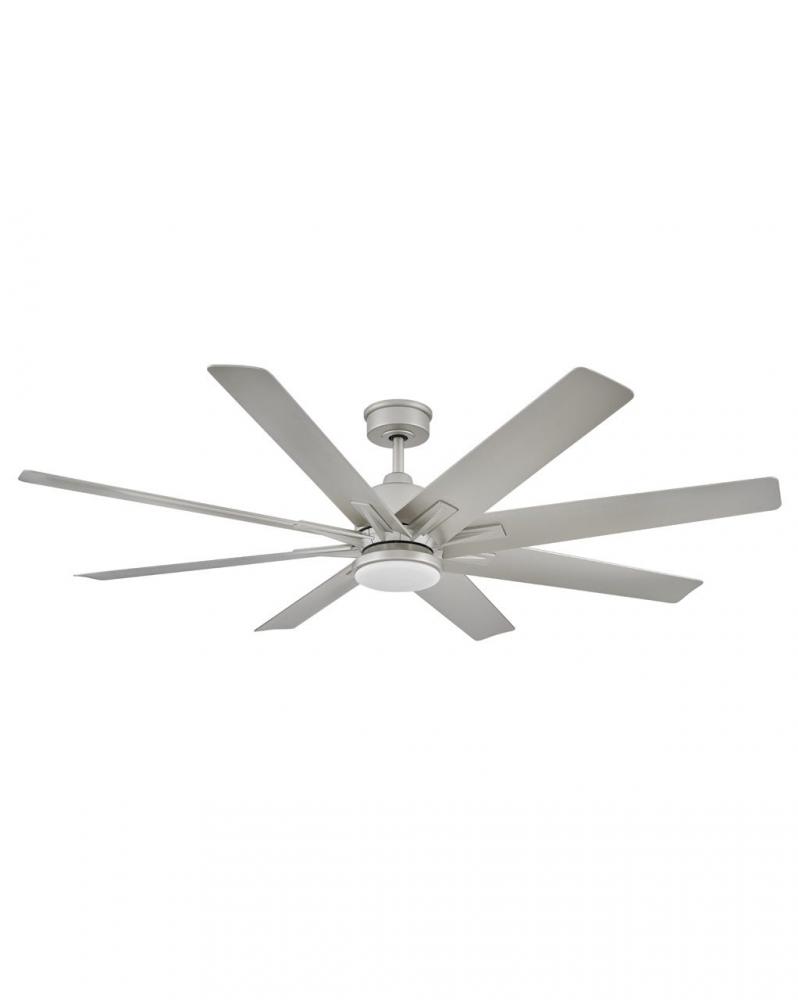

Concur 66" LED Smart Fan (904566FBN-LWD)
Everyone agrees. Concur's sophisticated silhouette combines form and function to offer maximum performance in style. A timeless, transitional blade design is available in contemporary classic finish options, including Brushed Nickel, Matte Black, Metallic Matte Bronze, and Matte White. Concur comes equipped with LED and DC motor technology to deliver excellent energy efficiency. Designed for versatility, Concur is suitable for both indoor and outdoor spaces.
Product Specification
Item #
904566FBN-LWD
Dimensions
Height: 16.50"
Width: 66.00"
Length: 66.00"
Additional product details
Category
Exterior , Fans
Subcategory
Exterior Fans , Ceiling Fans with Light
Finish
Nickel , White
Style
Transitional
Option
Wet Rated , Prop 65
Voltage
100-120
Lumens
1101-1600
Number of Blades
8+ Blades
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Fan
Finish
Brushed Nickel
Style
Transitional
Family
Concur
Glass
White Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
9496
Amperage
0.54
Blade Finish
Brushed Nickel
Blade Pitch
14
Blade Span
66
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6.5 Dia. x 2.5 D
Introduction Date
01/01/2023
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DC 155 x 22
Motor Type
DC
Ship Carton Height
9
Ship Carton Length
32
Ship Carton Width
15
Ship Weight
33
Vendor Ship Method
Parcel
Weight
26
Airflow Avg
6954
AMPS Avg
0.32
Avg Energy Use
25
Blade Material
Composite
Blade Options Available
No
Blade To Ceiling Height
11.25
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dual Mount
No
Efficiency Avg
280
Efficiency High
268
Energy Cost Avg
7
Energy Cost High
10
Energy Use High
35.4
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Wet Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
8
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
88
RPMS High
124
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
0.2
Title 24
No
WIFI Control Included
Yes
WIFI Control Optional
No


Other Details:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Merging the best of traditional and modern elements with a sophisticated and streamlined look
  • Motor carries a lifetime warranty
  • Powered by a highly efficient and quiet DC motor
  • Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item may be hung on a sloped ceiling
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • WiFi compatible with included fan control
