6" Recessed Shallow New Construction Housing Air-Tight IC Housing
Image may not reflect selected features
/vendors/149/large/PROG_P806S-N-MD-ICAT_hero_PRODIMAGE_1200.jpg
additional image

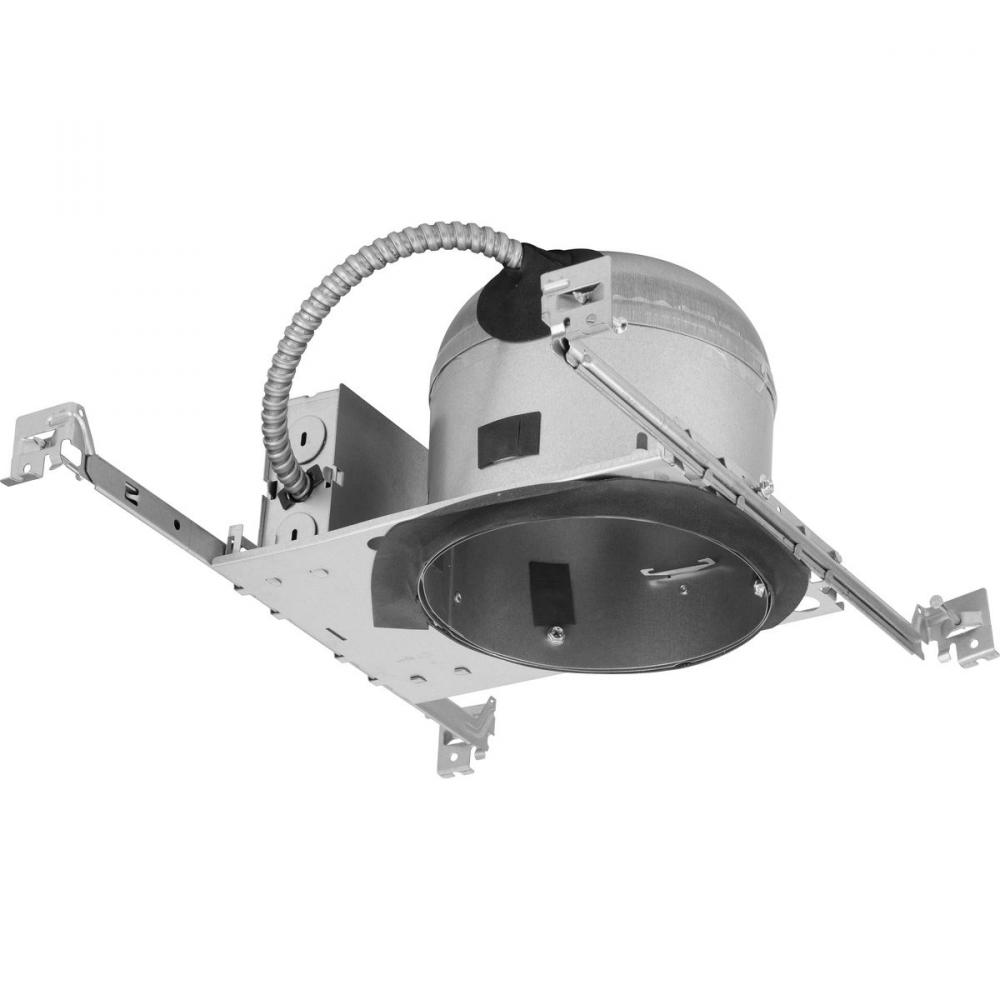

6" Recessed Shallow New Construction Housing Air-Tight IC Housing (P806S-N-MD-ICAT)
This 6 in. Shallow Recessed Housing with Quick Link Connector has several great installation features plus an Air-Tight rating. Its shallow design is ideal for 2x6 construction applications. It is ideal for IC and non-IC new construction applications. Its gasketed Air-Tight housing restricts airflow from conditioned spaces into unconditioned attic space, preventing unnecessary HVAC costs and improving the overall home energy efficiency. The housing and frame are constructed from die-formed corrosion resistant galvanized steel. The lamp housing compartment can be adjusted to fit ceiling thicknesses from ½ in. to 1 ¼ in. It features a universal J-box with snap-out sides. Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts - simply strip supply wires and push in. The housing has pre-installed nails on the adjustable hanger bars which are easily installed in regular lumber, engineered lumber, and laminated beams. Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings. The bar hangers have a maximum span of 24 in. and are scored in two locations for fast, clean breaking, allowing housing installation in very narrow joist spacings. It is UL and CUL listed for damp locations and is thermally protected against improper use of lamps.
Product Specification
Item #
P806S-N-MD-ICAT
Dimensions
Height: 5.63"
Width: 9.44"
Length: 6.63"
Additional product details
Category
Recessed Ltg.
Subcategory
Recessed Housing New
Style
Traditional
Option
Energy Efficient , Damp Rated , Prop 65
Voltage
100-120
Mount Type
Flush Mount
Location Rating
Damp Rated
Category
Recessed
Finish
Unfinished
Style
Utilitarian;Traditional;Modern;Transitional
Option
Damp Rated , Energy Efficient , Prop 65
Family
6" Shallow Recessed Housing
Voltage
120
Bulb Type
PAR-30SN
Keyword(s)
6 inch housing recessed functional light lights lighting fixture fixtures new construction airtight residential commercial medium base bulb bulbs lamp lamps led incandescent dimmable 1 one
Length
6.63
Material
Steel
Ship Carton Height
5.56
Ship Carton Length
13.08
Ship Carton Width
11.75
Ship Weight
2.14
Special Features
The housing and frame are constructed from die-formed corrosion resistant galvanized steel;Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space, reducing unnecessary HVAC energy usage, and the lamp housing compart
Warranty
1-Year Limited Warranty
Weight
2.34
Bulb Base
E26
Bulb Included
No
Can be Mounted Up or Down
No
Certified Listed Location
Damp Location Listed
Construction Material Main Part
Housing
Construction Material Secondary
Steel
Construction Material Secondary part
construction
Convertible Fixture Includes Both Mounts
No
Country of Origin
CN
Dark Sky
No
Energy Efficient
Yes
Energy Star
No
Finish Type
Unfinished
Grounded Convenience Outlet included
No
JA8
No
Lamp Type Basic
Incandescent
Lamp Wattage
50
Mount Location
Ceiling joists, or in suspended Ceilings
Post Top Fits Standard
No
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Quick Install Canopy
No
Quick Link Connector
No
Room Type
Bathroom;Bedroom;Bonus Room;Closets;Garage;Great Room;Kitchen;Living Room;Laundry;Utility
Safety Rating
cULus
Title 24
No
Weight of Fixture Exceeds NEC Limits
No
Length
