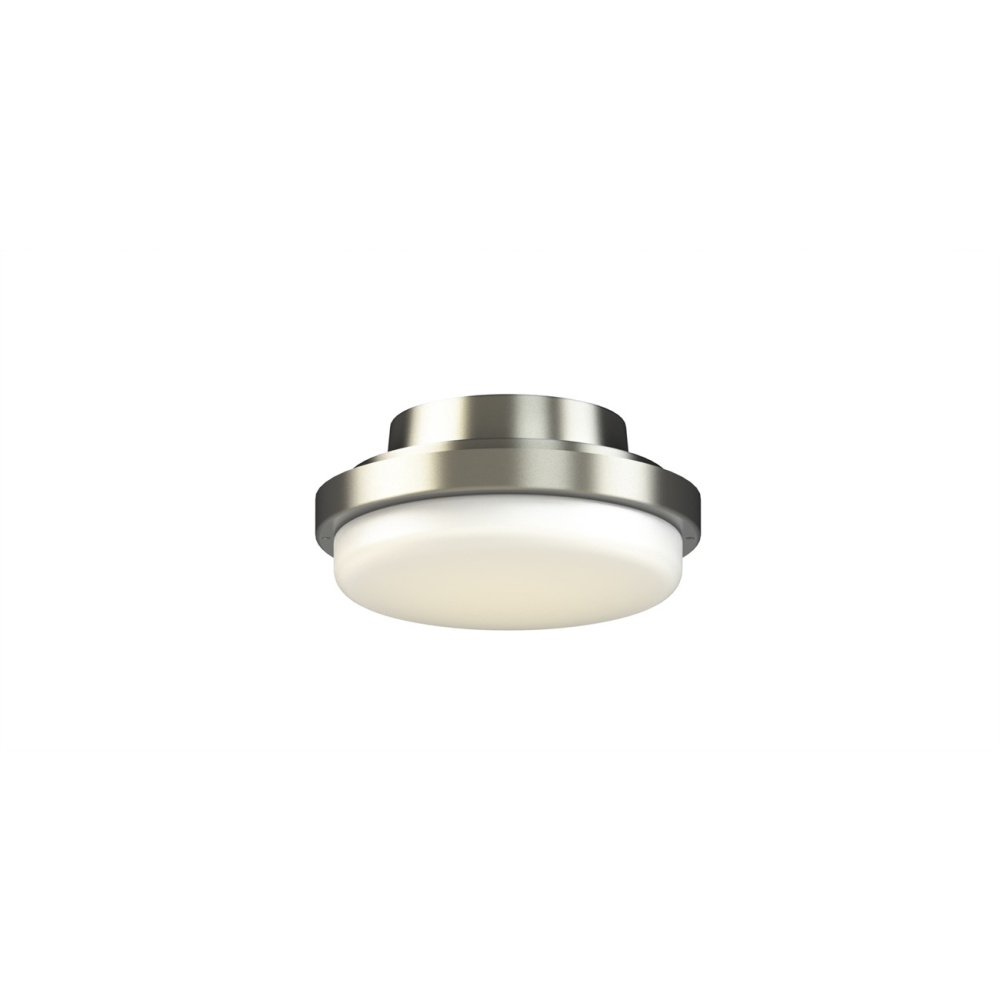

TriAire Ceiling Fan Correlated Color Temperature (CCT) Select LED Light Kit - Brushed Nickel (LK8514BN)

TriAire Custom LED CCT Select Light Kits by Fanimation feature multiple different finishes. Kit includes an Opal frosted glass with 1 dimmable, integrated LED CCT Select Temperature 18 watt bulb. You can create the TriAire Custom to fit any style in any location.

Downloads

Click Here to View Specification Sheet

Product Specification

Item #

LK8514BN

Dimensions

Height: 3.48"

Width: 7.09"

Length: 7.09"

Additional product details

Option

Damp Rated , LED

Category

Lights

Finish

Brushed Nickel

Option

LED

Family

TriAire Custom

Glass

Opal Frosted

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Type

LED Module

Harmonized Codes

8414.90.1040

Kelvin

3000, 4000, 5000

Lumens / Light Output

1600

Ship Carton Height

6.5

Ship Carton Length

9.06

Ship Carton Width

9.06

Ship Weight

2.93

Sold By

Each

Warranty

5 Years

Weight

1.83

Bulb Base

Connector Pin

Bulb CRI

Cap Included

Carton Cubic Feet

0.3088

Case Height

13.78

Case Length

28.15

Case Quantity

Case Weight Pounds

17.51

Case Width

9.45

CEC Uploaded

Yes

Country of Origin

China

DOE-FTC Uploaded

Yes

Exempt from DOE Procedure

Leadwire

LED

Yes

Light Kit Energy Star 4

Location Rating

Damp Rated

Max Wattage

18 W

Regulated Product

Yes

Safety Rating

UL Approved, cUL Approved

Voltage Cycles

60 Hz

Other Details:

COMPATIBILITY: For use with TriAire Custom Marine Grade ceiling fans by Fanimation
FINISH: Brushed Nickel
INSTALLATION: Remove the trim cap cover from TriAire fan and install the light kit
LIGHTING: Includes one 18-watt dimmable LED - 697/724/712 Lumens, 3,000/4,000/5,000 Kelvin temperature, 90 CRI
LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
OPTIONS: Available in a variety of finishes to compliment TriAire ceiling fans
SHADE: Opal frosted glass
TECHNOLOGY: Correlated Color Temperature (CCT) Select Technology, providing a selection of light colors ranging from warm white, bright light or daylight
WARRANTY: 1-Year
