TriAire Custom Indoor/Outdoor Ceiling Fan DC Motor- Brushed Nickel
Image may not reflect selected features
/vendors/90/large/MAD8514BN.jpg
additional image
additional image
additional image
additional image

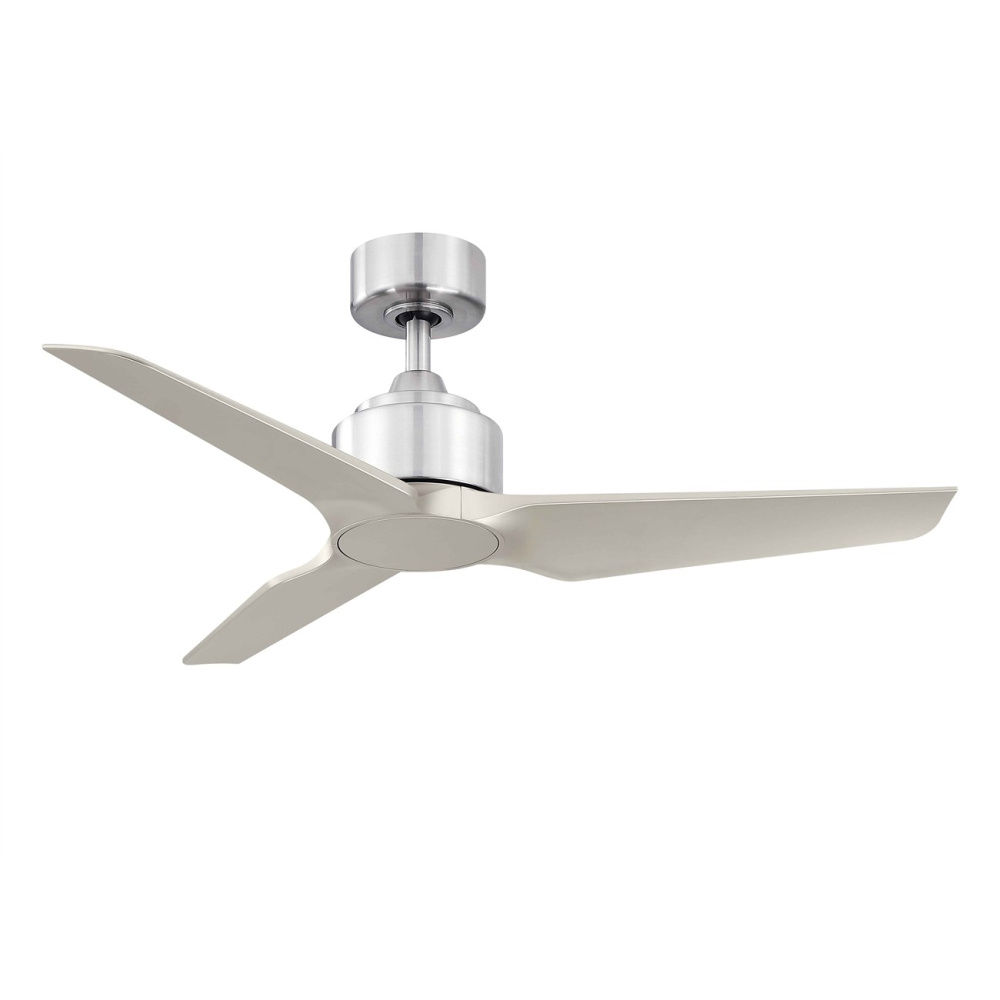

TriAire Custom Indoor/Outdoor Ceiling Fan DC Motor- Brushed Nickel (MAD8514BN)
The TriAire Custom by Fanimation fits any style and location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. This ceiling fan is wet rated for indoor or outdoor use. It can be controlled using the Fanimation Wi-Fi fanSync application.
Downloads
Product Specification
Item #
MAD8514BN
Dimensions
Height: 12.42"
Width: 44.00"
Length: 44.00"
Additional product details
Option
Energy Efficient , Outdoor , Damp Rated
Category
Fan-Multi
Finish
Brushed Nickel
Option
Energy Efficient , Outdoor
Family
TriAire Custom
Voltage
120 V
Air Flow CFM
6765
Air Flow Efficiency
230
Blade Pitch
14
Canopy
5.75 Dia x 2.57 H
Harmonized Codes
8414.51.3000
Light Kit Included
No
Motor Size
158 X 22
Motor Type
DC
Ship Carton Height
8.35
Ship Carton Length
15.94
Ship Carton Width
8.86
Ship Weight
13.6
Sold By
Each
Warranty
1 Year
Weight
12.19
Airflow Efficiency Low
357
Airflow Efficiency Medium
503
Avg Airflow Efficiency
247
Avg CFM Energy
4860
Avg Energy Use
20
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
8
Cap Included
Yes
Carton Cubic Feet
0.6824
Case Height
8.35
Case Length
15.94
Case Quantity
1
Case Weight Pounds
13.6
Case Width
8.86
CEC Uploaded
Yes
Ceiling To Blade Edge
12.92
Ceiling To Bottom (No Light Kit)
12.42
Ceiling To Bottom (With Light Kit)
14.62
CFM Low
821
CFM Medium
4222
Country of Origin
China
Current Draw High
0.42
Current Draw Low
0.04
Current Draw Medium
0.13
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
4.5
Energy Efficient
Yes
Exempt from DOE Procedure
No
Fan Energy Star 4
No
Housing Diameter
7.09
Included Control
TR305
Included Control Type
Handheld
Indoor
Yes
Leadwire
80
Location Rating
Damp Rated
Max Ceiling Slope
27
Max Length
60
Max Width
60
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Outdoor
Yes
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
161
RPM Low
28
RPM Medium
98
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 Hz
Watts High
29
Watts Low
2
Watts Medium
8


Other Details:
  • CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries
  • FINISH: Brushed Nickel
  • INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
  • LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
  • LOCATION: This ceiling fan is Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
  • POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 6,765 CFM
  • Push buttons control 16 variable fan speeds, infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
  • SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan's rotation and create energy savings
  • TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
  • WARRANTY: Limited lifetime
