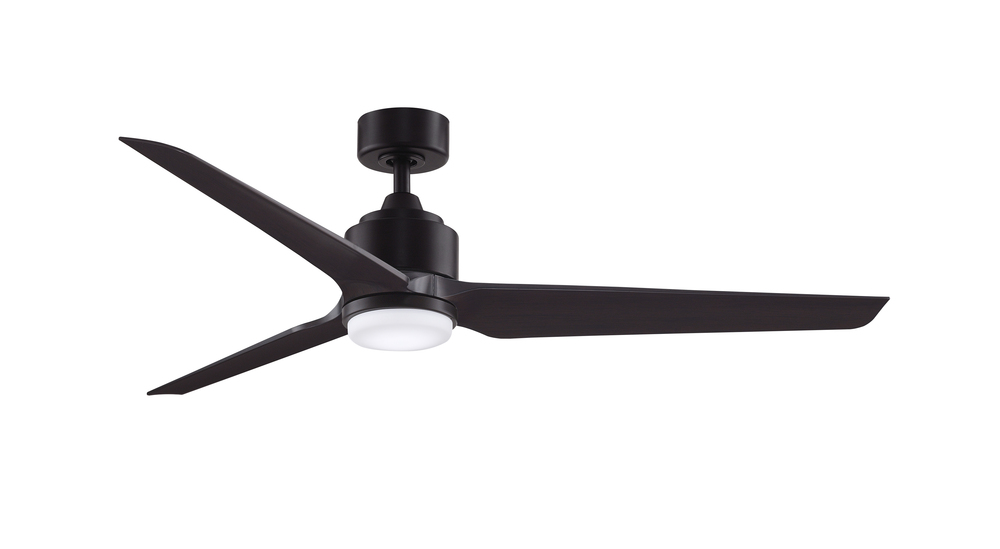

TriAire Custom Motor - DZW
Image may not reflect selected features
TriAire Custom Motor - DZW (MAD8514DZW)
The TriAire Custom by Fanimation fits any style in any location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. *Wet rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
6765 Cubic Feet per Minute
Electricity Rate
29 Watts (excluded lights)
Airflow Efficiency
230 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
MAD8514DZW
Dimensions
Height: 12.42"
Width: 44.00"
Length: 44.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Bronze
Style
Traditional
Option
Energy Star , Wet Rated
Voltage
10-99
Number of Blades
3 Blades
Subfinish
Dark Bronze
Location Rating
Wet Rated
Wattage
8w
Category
Fan-Multi
Finish
Dark Bronze
Option
Wet
Family
TriAire Custom
Voltage
120 V
Additional Info
5103 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and , ENERGY STAR Most Efficient 2020 , Set of 3 Wet Rated blades with multiple finish options and 18 watt LED light kit (sold separately) , TR205D handheld remote with CR2032 batteries included
Air Flow CFM
6765
Air Flow Efficiency
230
Amperage
0.42
Blade Pitch
14
Canopy
5.75 Dia x 2.57 H
Diameter
7.09
Down Rod Included
4.5
Electricity Used
29
Harmonized Codes
8414.51.3000
Length
44, 48, 52, 56, 60
Light Kit Included
No
Max Length
60
Max Width
60
Motor Fan Speed
16
Motor RPM
161
Motor Size
158 X 22
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
8.35
Ship Carton Length
15.94
Ship Carton Width
8.86
Ship Weight
13.6
Sold By
Each
Warranty
Limited Lifetime
Weight
12.19
Airflow Efficiency Low
357
Airflow Efficiency Medium
503
Avg Airflow Efficiency
247
Avg CFM Energy
4860
Avg Energy Use Watts
20
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
8
Canopy Diameter
5.75 Dia
Canopy Height
2.57 H
Cap Included
Yes
Carton Cubic Feet
0.68
Cartons Per Unit
1
Case Height
8.35
Case Length
15.94
Case Quantity
1
Case Weight Pounds
13.6
Case Width
8.86
CEC Uploaded
Yes
Ceiling To Blade Edge
12.92
Ceiling To Bottom
12.42 , 14.62
Ceiling to Bottom with LK
19.3
CFM Low
821
CFM Medium
4222
Compatible Accessories
CCK8002DZW, DR1-CPDZ, DR1SS-12DZW, DR1SS-18DZW, DR1SS-24DZW, DR1SS-36DZW, DR1SS-48DZW, DR1SS-60DZW, DR1SS-72DZW, SCB1-52
Compatible Blades
BPW8514-44BLW, BPW8514-44DWAW, BPW8514-44MWW, BPW8514-44SLW, BPW8514-44WEW, BPW8514-48BLW, BPW8514-48DWAW, BPW8514-48MWW, BPW8514-48SLW, BPW8514-48WEW, BPW8514-52BLW, BPW8514-52DWAW, BPW8514-52MWW , BPW8514-52SLW, BPW8514-52WEW, BPW8514-56BLW, BPW8514-56DWAW, BPW8514-56MWW, BPW8514-56SLW, BPW8514-56WEW, BPW8514-60BLW, BPW8514-60DWAW, BPW8514-60MWW, BPW8514-60SLW, BPW8514-60WEW
Compatible Light Kits
LK8514DZW
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.42
Current Draw Low
0.04
Current Draw Medium
0.13
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
7.09
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
27
Max Watt
29
Maximum Slope Degree
27
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
161
RPM Low (II)
28
RPM Medium (IV)
98
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
2
Watts Medium
8
Wet Rated
Yes


Other Details:
  • 5103 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
  • Energy Star Most Efficient 2022
  • Set Of (3) Wet Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
  • Tr305 Handheld Remote With 23a Battery Included
Ceiling To Bottom
